curved indoor/outdoor p2.6 p2.9 p3.91mm small pitch curved flexible led display screen for advertising

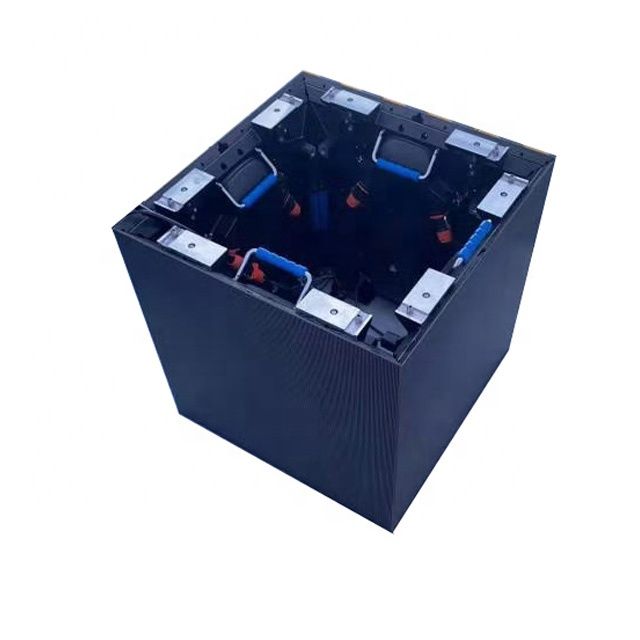

90°Right Angle seamless splicing.The module and the cabinet are equipped with 45 ° bevels
1: Special Angle Lock
Mutiple creative shape splicing, can be applied in varied situation
2. Mixed Splicing
Compatible module, different cabinet support mixed splicing
3:High Quality Module
Module support front service
4:Up & Down Fast Lock
Quick installation by single person
5:Support Dislocation Splicing
Cabinet can be staggered half for up-down and left-right, create magic stage
Product Paramenters
|
Pitch/mm
|
P2.604
|
P2.976
|
P3.91
|
||
|
Module size/mm
|
250 x 250
|
250 x 250
|
250 x 250
|
||
|
Density of pixel/(dots/m2)
|
147456
|
112896
|
65535
|
||
|
Resolution of module
|
96*96
|
84×84
|
64×64
|
||
|
Use place
|
Indoor
|
Indoor
|
Indoor / Outdoor
|
||
|
Cabinet size
|
500 x 500
|
500 x 500
|
500 x 500
|
||
|
Driving method
|
1/32 scan
|
1/28 scan
|
1/16 scan
|
||
|
Refresh rate Hz/S
|
3840
|
3840
|
3840
|
||
|
Operation of Environmental Temperature/°C
|
below – 30 to above 60
|
||||
|
Working vlotage
|
110-220 VAC/+/- 10%
|
||||
|
Brightness adjustment
|
256 levels of each color(manually),100 levels of each color(automatically)
|
||||
|
Life span
|
>100,000h
|
||||
|
Defect dot rate
|
<0.0001
|
||||
|
Cabinet Frame
|
Die-casting Aluminum
|
||||
